Description

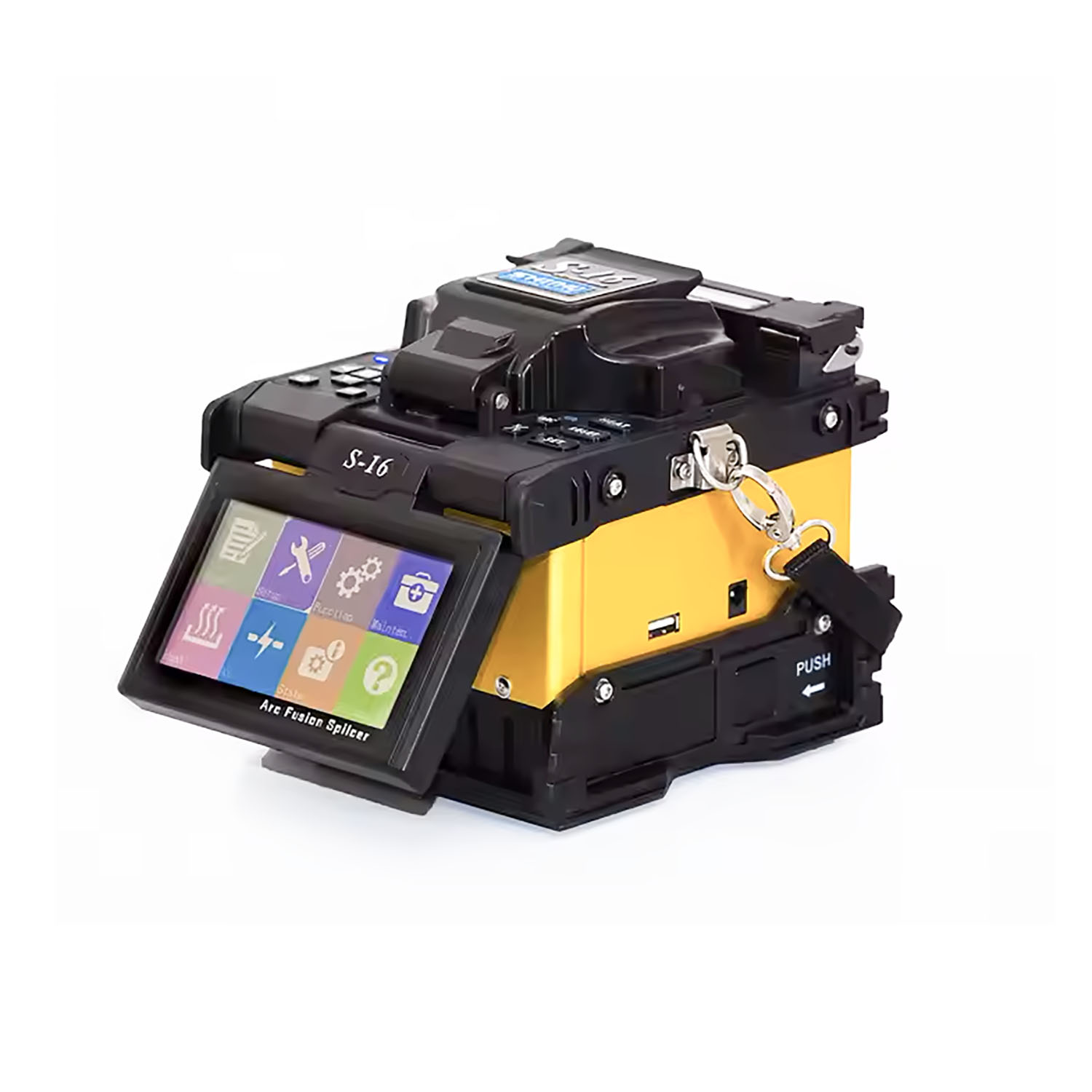

The S-16 is built for the people who work where conditions are worst. An all-metal chassis with an IP52 rating shrugs off shock, dust and water, while PAS technology and integrated holders keep splice loss low and setup fast — ideal for medium backbone and FTTx deployments.
Features
- PAS technology
- Integrated holder design
- 6 seconds splicing & 18 seconds heating
- Dual operating mode (touch screen & button)
- Stable splicing and low splicing loss
- Real-time heating temperature monitoring
- All metal material, robust and durable
- Anti-shock, dust-proof & water-resistant, IP52 certificate
- Suitable for medium backbone, FTTx projects etc.
Product Specification
| Applicable Fiber | G651 / G652 / G653 / G655 / G657 etc. |
|---|---|
| Cladding Diameter | 80~150μm |
| Coating Diameter | 160~3000μm |
| Cleaved Length | 10-16mm (coating diameter <250μm), 16mm (coating diameter 250~1000μm) |
| Typical Splice Loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB |
| Return Loss | >60dB |
| Splicing Program | 100 modes |
| Operation Mode | Manual / Auto |
| Auto-Heating | Available |
| Splicing Time | 6~12 seconds |
| Heating Time | 18~26 seconds for 40mm and 60mm shrinkable sleeves |
| Fiber Magnification | 320X (X or Y view), 160X (X and Y view) |
| Viewing Display | Dual high sensitivity camera, 4.3" HD color LCD touch screen |
| Data Storage | 8000 groups fusion records |
| Loss Evaluation | Available |
| Tension Test | 1.8~2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery Capacity | Detachable 5200mAh Li-battery, typical 250 cycles splicing and heating |
| Power Supply | Adapter, input: AC100~240V (50/60Hz), output: DC13.5V |
| Electrode Life | More than 4000 ARC discharges, easy to replace |
| Terminal | USB 2.0 port for software upgrading and data transfer |
| Operating Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s |
| Dimension / Weight | 6.50" x 5.31" x 5.51" (165 x 135 x 140mm) / 4.52 lbs (2.05kg) |

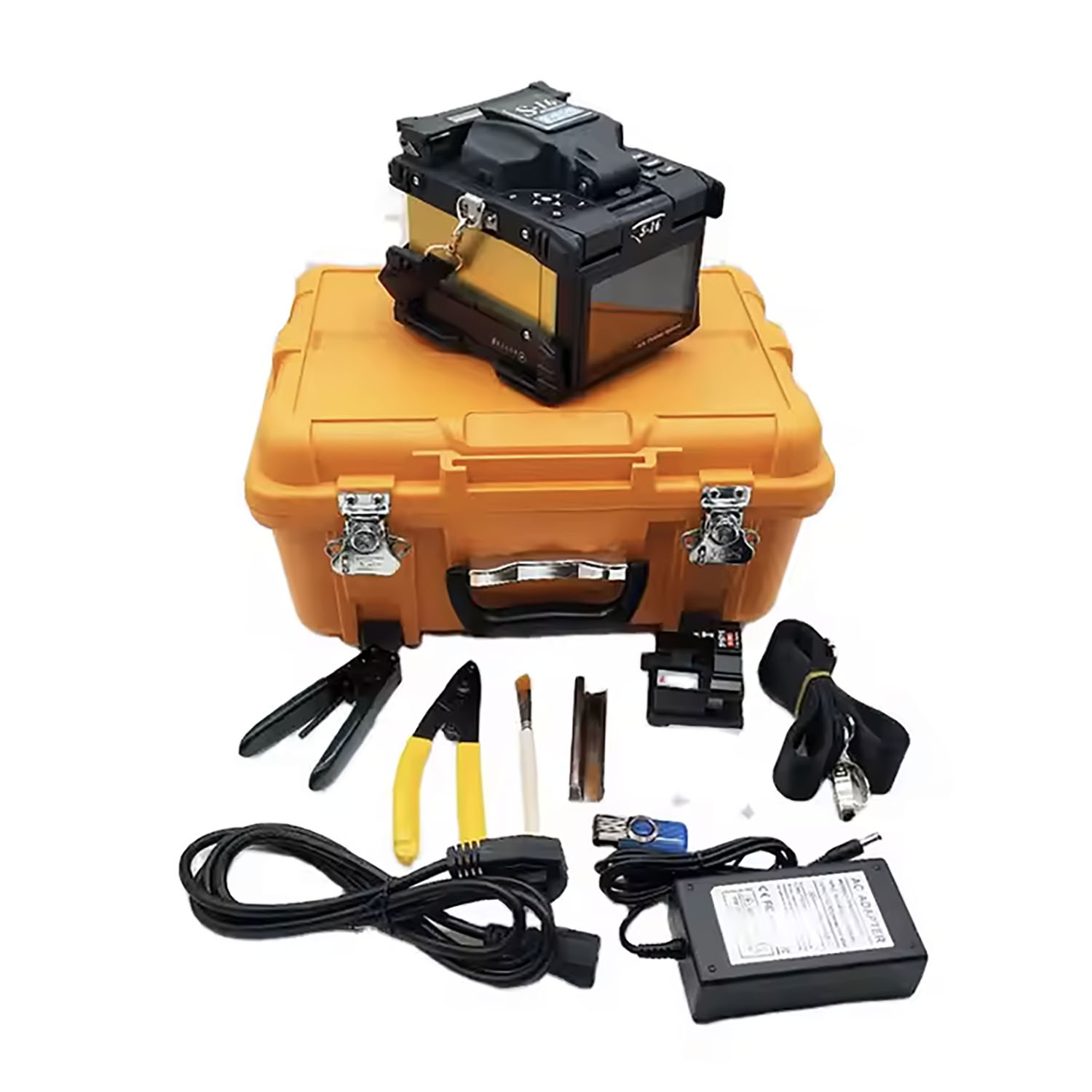

Package Includes
- Fusion Splicer
- Fiber Cleaver
- Drop Cable Stripper
- Fiber Stripper
- Power Plug
- Power Adapter
- Strap
- Spare Electrodes
- Digital User Manual
- Cooling Tray
- Cleaning Brush
- Carrying Case
Ordering & Delivery
- Factory-direct pricing — no middlemen, no markups.
- Price includes door-to-door delivery and full customs clearance.
- We ship to 40+ countries worldwide.
- Typical delivery time: 2–3 weeks.
