Description

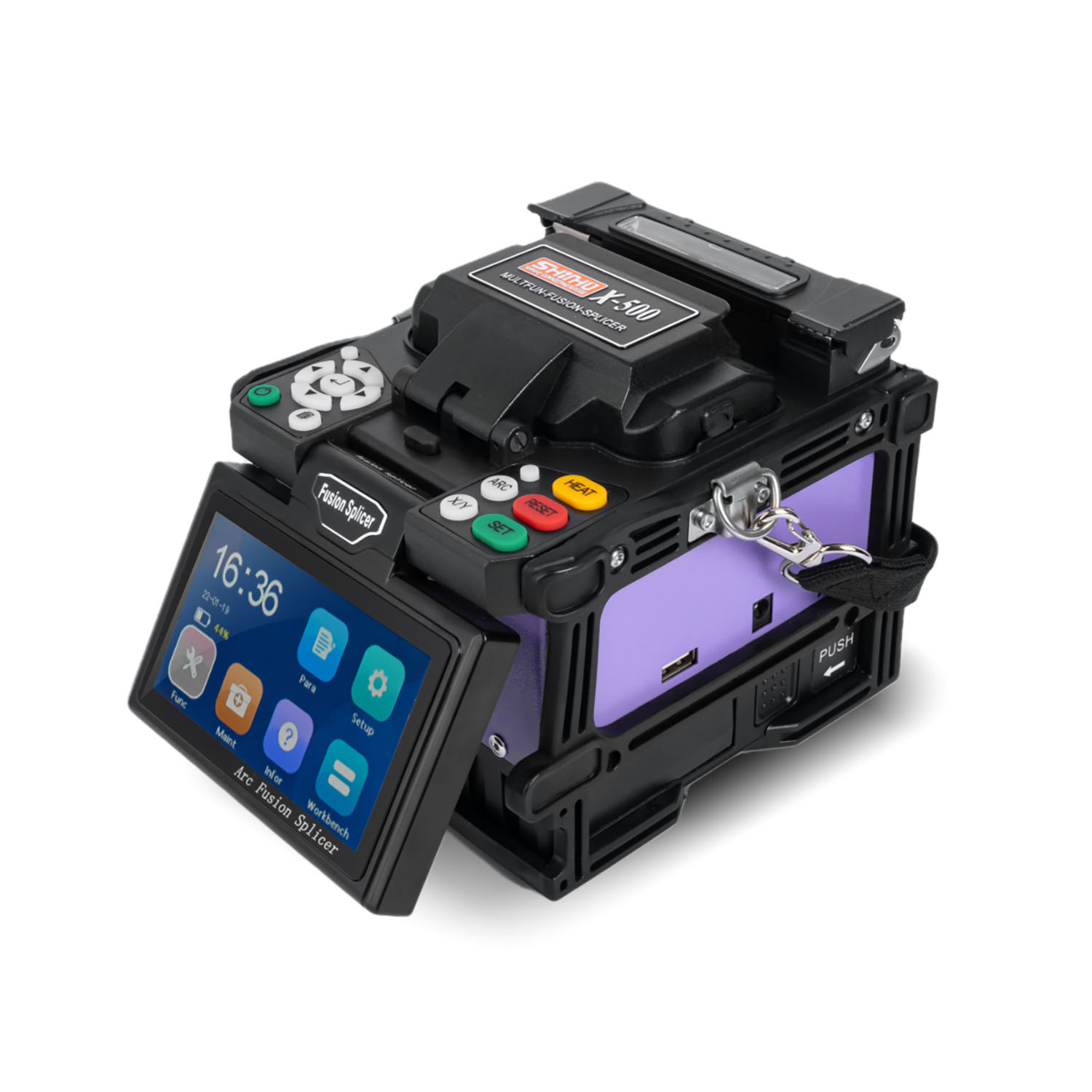

The X-500 is a handheld FTTx fusion splicer engineered for technicians who need speed without compromise. Its new GPU-driven system delivers automatic, real-time ARC calibration and a 7-second splice, while staying light enough to carry up a pole all day.
Features
- Reliable performance, new GPU system, energy saving
- 7 seconds splicing & 26 seconds heating
- Automatic & real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Apply to bare fiber, pigtails, drop cable etc.
Product Specification
| Applicable Fiber | G651 / G652 / G653 / G655 / G657 etc. |
|---|---|
| Cladding Diameter | 80~150µm |
| Coating Diameter | 160~3000µm |
| Cleaved Length | 10-16mm (coating diameter <250µm), 16mm (coating diameter 250~1000µm) |
| Typical Splice Loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB |
| Return Loss | >60dB |
| Splicing Program | 100 modes |
| Operation Mode | Manual / Auto |
| Auto-Heating | Available |
| Splicing Time | 7~12 seconds |
| Heating Time | 20~26 seconds for 40mm and 60mm shrinkable sleeves |
| Fiber Magnification | 320X (X or Y view), 160X (X and Y view) |
| Viewing Display | Dual high sensitivity camera, 4.3" HD color LCD touch screen |
| Data Storage | 8000 groups fusion records |
| Loss Evaluation | Available |
| Tension Test | 1.8~2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery Capacity | Detachable 5200mAh Li-battery, typical 250 cycles splicing and heating |
| Power Supply | Adapter, input: AC100~240V (50/60Hz), output: DC13.5V |
| Electrode Life | More than 4000 ARC discharges, easy to replace |
| Terminal | USB 2.0 port for software upgrading and records exporting |
| Operating Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s |
| Dimension / Weight | 6.30" x 5.51" x 5.31" (160 x 140 x 135mm) / 4.34 lbs (1.97kg) |

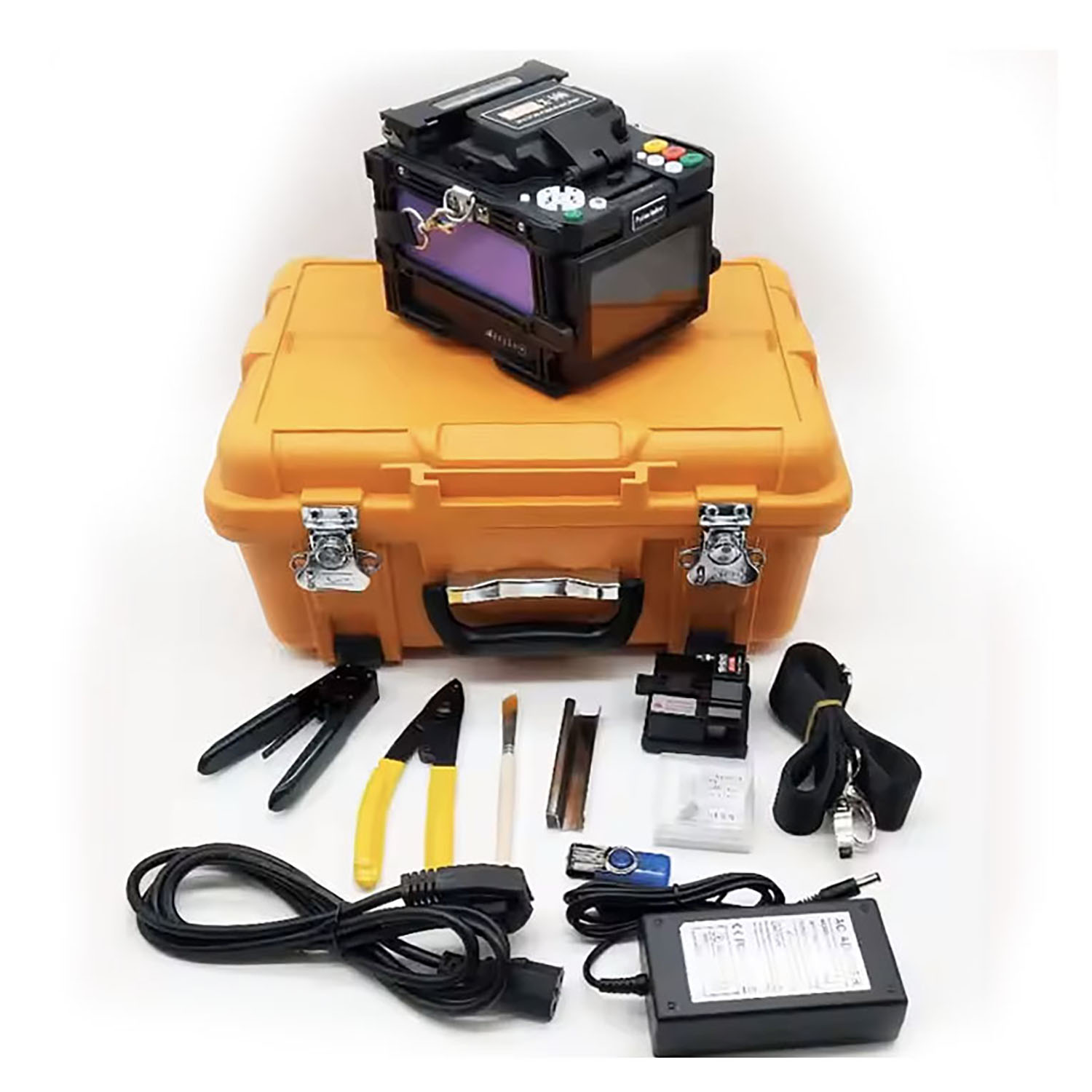

Package Includes
- Fusion Splicer
- Fiber Cleaver
- Drop Cable Stripper
- Fiber Stripper
- Power Plug
- Power Adapter
- Strap
- Spare Electrodes
- Digital User Manual
- Cooling Tray
- Cleaning Brush
- Carrying Case
Ordering & Delivery
- Factory-direct pricing — no middlemen, no markups.
- Price includes door-to-door delivery and full customs clearance.
- We ship to 40+ countries worldwide.
- Typical delivery time: 2–3 weeks.
